HDN
The hidden platform lift is for the small level differences - up to 500 mm. All models are available in 3 standard platform widths: 900x1400 mm, 1000x1400 mm and 1100x1400 mm.

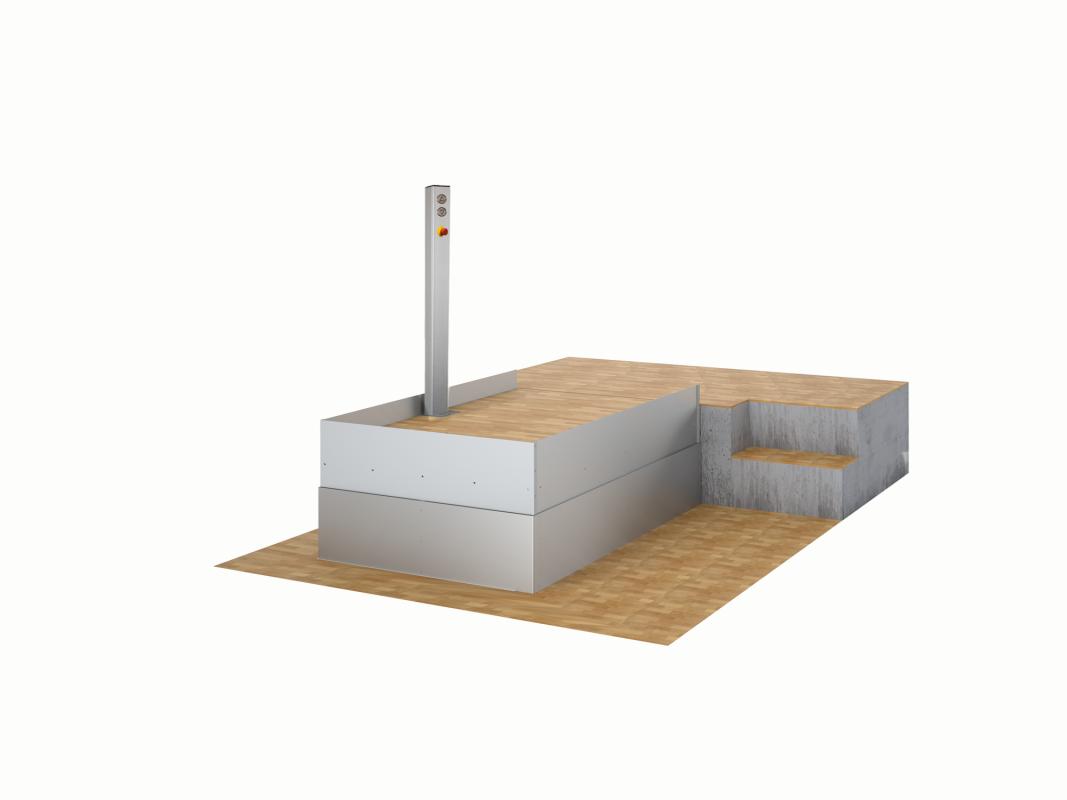

HDN 900
900 x 1400 mm platform
This is the smallest of the 3 platforms.This platform is suitable in places with limited space available an no need for the wheelchair to change direction on the platform.
The 100 mm safety panels all around the lifting platform rise first, afterwards follows the platform which travels safely and smoothly up to the upper level. The safety panels are a substantial part of the construction and the choice of model/pit drawing.

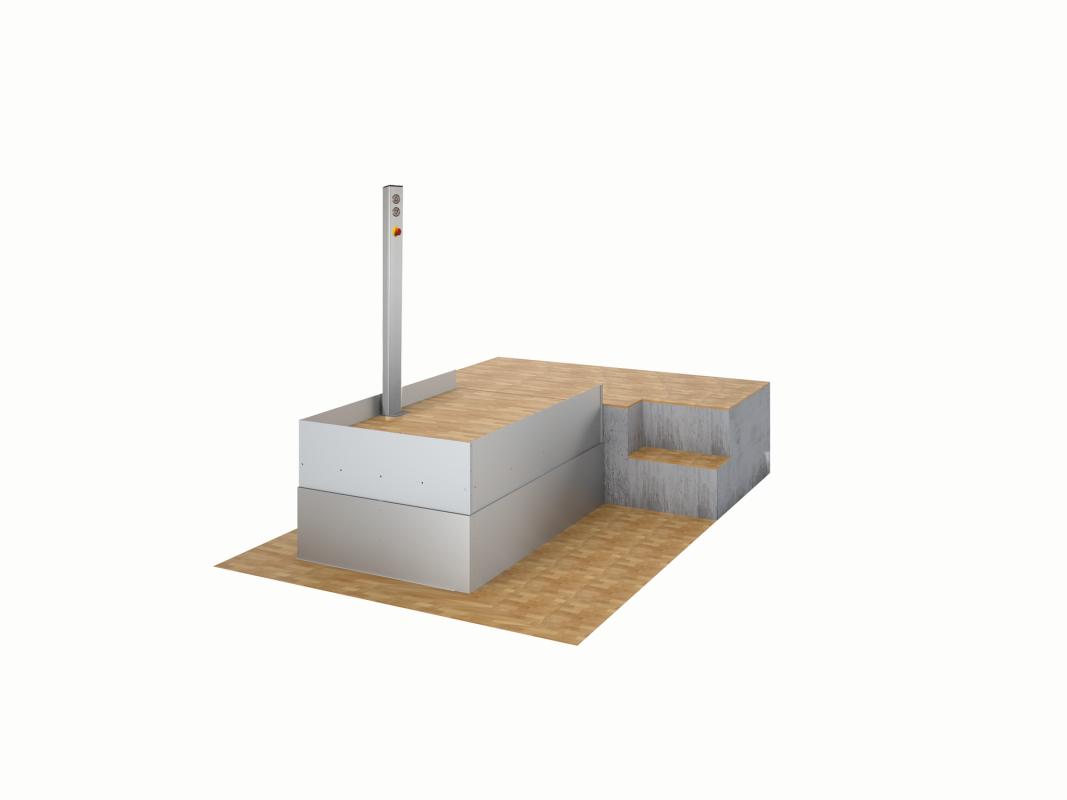

HDN 1000
1000 x 1400 mm platform
This is the middle size of platforms. This platform requires a little more space but it also provides better possibility to maneuvering the wheelchair on the platform.
The only difference between the 3 HDN models is the size of the lifting platform but due to the configuration of the lifting platform (the optimum individualisation of the safety panels) 2 factors are important when choosing the right submodel: lifting height and whether the user need to exit the platform at the SHORT or the LONG side of the platform at the top level.

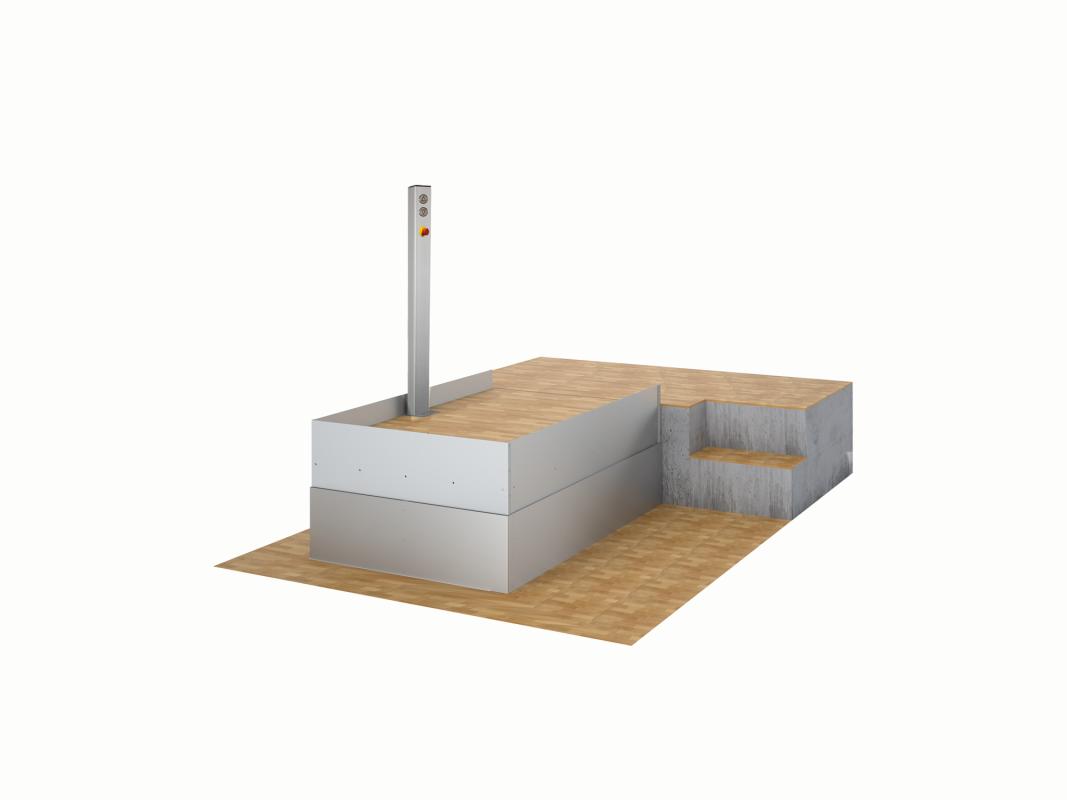

HDN 1100
1100 x 1400 mm platform
This is the widest of the 3 HDN models, thus it goes without saying that here's enough space for a big wheelchair to turn around.

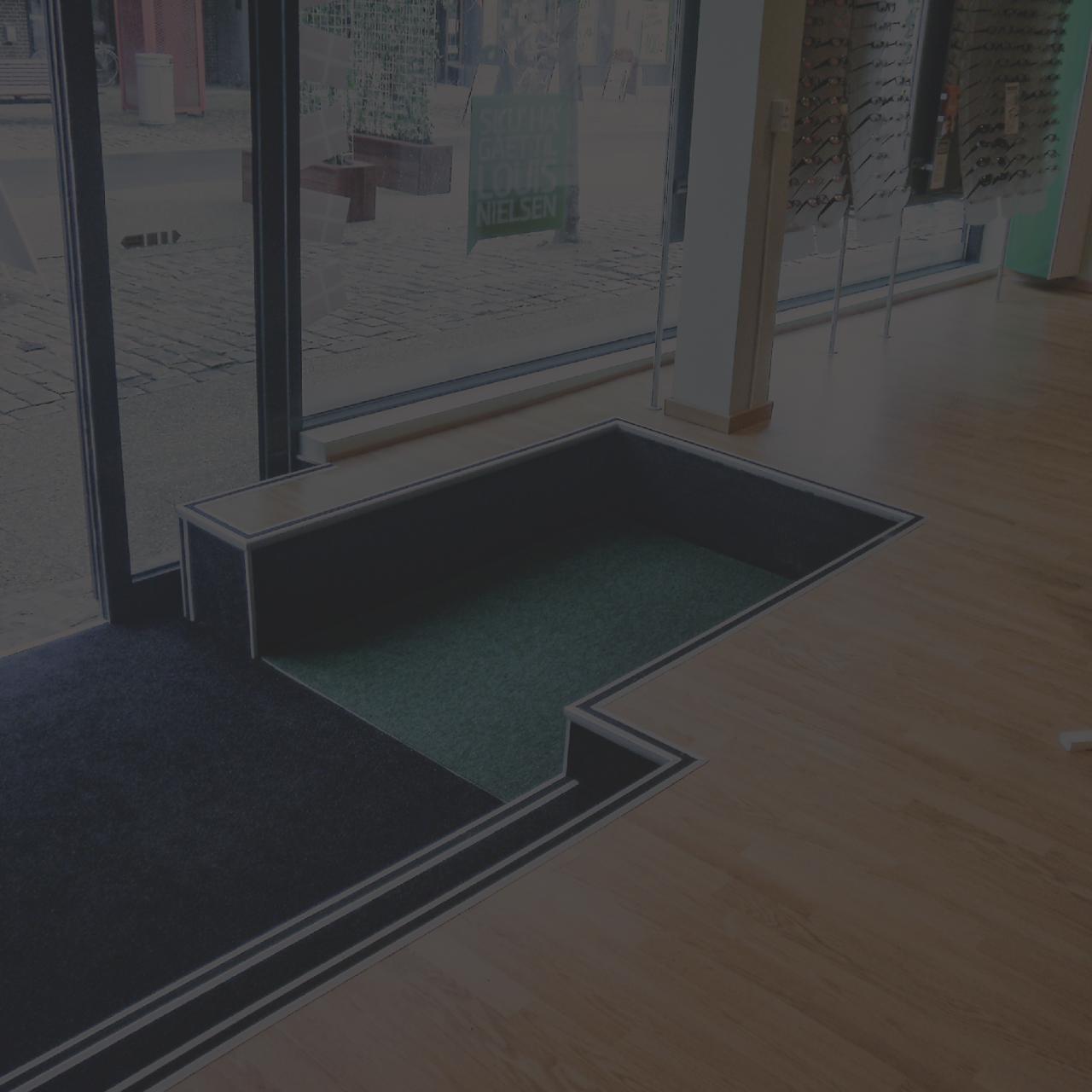

Cover the platform with the flooring as on the surrounding the floor - and nobody sees the HDN when it is down. At public places it could be convenient to draw the attention to the lifting platform - Liftup supplies a special designed carpet with wheelchair symbol.
